Biogas  anaerobic digester efficiency monitor and gas warning  instrument for monitoring processes and personal safety at landfill sites, sewage treatment facilities and biogas plants.

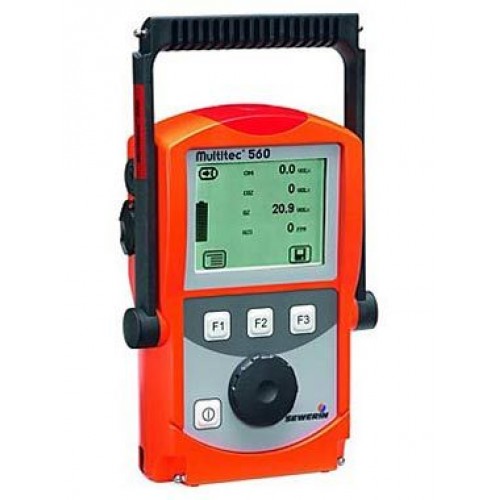

The Multitec® 560 is a combined gas warning and measuring device. When used as a gas warning instrument it reliably and automatically detects gases which are toxic and hazardous to humans. When used as a gas measuring device it records and documents the composition of biological process gases.

The intelligent operator guidance optimally supports the user in his work. For example, the device prevents switching between measuring ranges at critical gas concentrations, thus ensuring maximum safety – for humans and equipment.

Multitec 560 Features

• Innovative operating concept with jog dial, menu navigation and function keys
• Large transflective, i.e. semi-transparent display, excellent readability, even in direct sunlight
• Selective infrared sensors for methane and carbon dioxide
• Highly durable electrochemical sensors for oxygen and toxic gases including Hydrogen Sulphide
• Explosion protection: II2G Ex d e ib IIB T4 Gb / II2G Ex d e ib IIC T4 Gb
• EC type-examination certificate: TÜV 07 ATEX 553353 X
• Measuring function approval: BVS 09 ATEX G 001 X, PFG 08 G 002 X (applies to ExTox warning application for CH4, CO2, O2, CO, H2S)
• Minimum eight hour battery life in use, rapid charging in four hour

Download Datasheet
